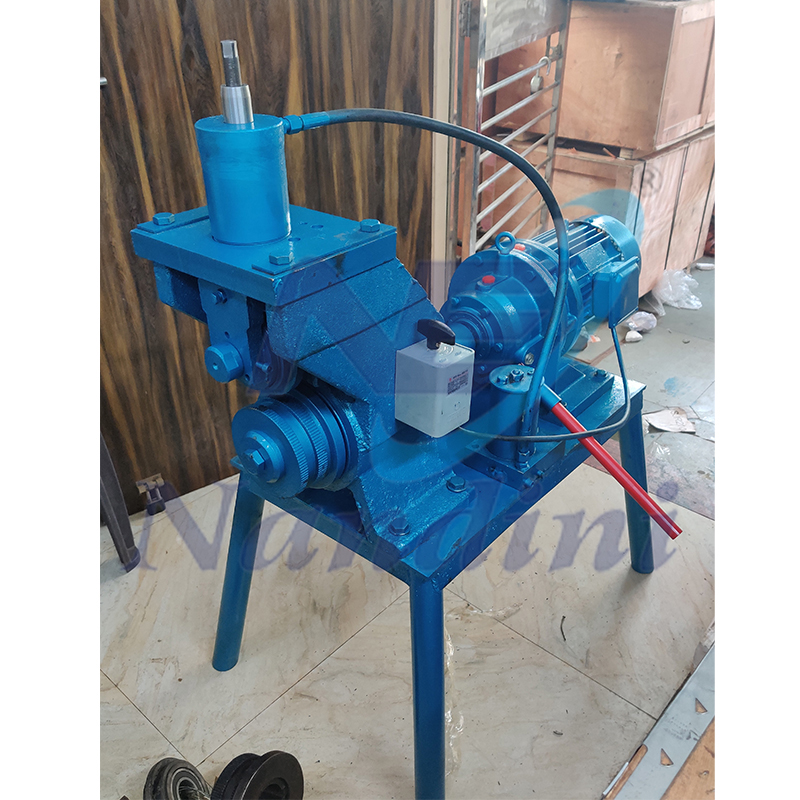

ELECTRIC PIPE GROOVING MACHINE

Model : NEG16B SIZE :- 6” TO 16"


Product Specification
1. Machine Size : 6” to 16” (150 mm to 400 mm)
2. Grooving Wheel : 6”-8”, 8”-12” & 14” - 16”
3. Pressure Wheel : 6”-8”, 8”-12” & 14” - 16”
4. Spindle Speed : 22RPM
5. Power Supply : 380V
6. Motor Power : 2400W
7. Max Wall : 10 MM
Product Features
1.The Hydraulic Roll Groover, powered by 2400 W induction motor, is capable of grooving 6”to 16”
2. It comes with standard support legs, the unit can be set up quickly.
4. The induction motor ensures steady and quiet working.

  • Availability : Always Ex-stock
  • Delivery : The machine will dispatch within day after received 100% payment

Seaworthy Packing
  • Packing Size : 860x450x820 MM
  • Gross Weight : 140 Kg.
