Product Specification
|
Modal |
NEHBW200 |
NEHBW250 |
NEHBW315 |
NEHBW355 |
NEHBW400 |
NEHBW450 |
NEHBW500 |
NEHBW630 |
|
Welding Ranges (mm) |
63-200 |
90-250 |
90-315 |
110-355 |
180-400 |
200-450 |
180-500 |
315-630 |
|
Standard Reducers (mm) |
63-75-90-110-125-140-160-180-200 |
90-110-125-140-160-180-200-225-250 |
90-110-125-140-160-180-200-225-250-280-315 |
110-125-140-160-180-200-225-250-280-315-355 |
180-200-225-250-280-315-355-400 |
200-225-250-280-315-355-400-450 |
180-200-225-250-280-315-355-400-450-500 |
315-355-400-450-500-560-630 |
|
Power Supply |
220V/50Hz, 1 PH |
220V/50Hz, 1 PH |
220V/50Hz, 1 PH |
220V/380V,50Hz, 1/3PH |
380V/50Hz, 3 PH |
380V/50Hz, 3 PH |
380V/50Hz, 3 PH |
380V/50Hz, 3 PH |
|
Total Power |
3.55KW |
4.15KW |
4.95KW |
5.45KW |
7.7KW |
8.7KW |
8.7KW |
10.1KW |
|
Heating Plate |
1.8KW |
2.3KW |
3.1KW |
3.6KW |
5.5KW |
6.5KW |
6.5KW |
7.5KW |
|
Planning Tool |
1.0KW |
1.1KW |
1.1KW |
1.1KW |
1.1KW |
1.1KW |
1.1KW |
1.5KW |
|
Hydraulic Station |
0.75KW |
0.75KW |
0.75KW |
1.1KW |
1.1KW |
1.1KW |
1.1KW |
1.1KW |
|
Pressure Adjusting Range |
0-16MPa |
0-16MPa |
0-16MPa |
0-16MPa |
0-16MPa |
0-16MPa |
0-16MPa |
0-16MPa |
|
Max Temperature of Heating Plate |
270°C |
270°C |
270°C |
270°C |
270°C |
270°C |
270°C |
270°C |
|
Temperature Deviation |
+5°C |
+5°C |
+5°C |
+5°C |
+7°C |
+7°C |
+7°C |
+7°C |
Product Features
1. Suitable for PE, PP, PVDF pipes butt welding integrated die casting aluminium clamps, steel base with cylinder, provides stable performance.

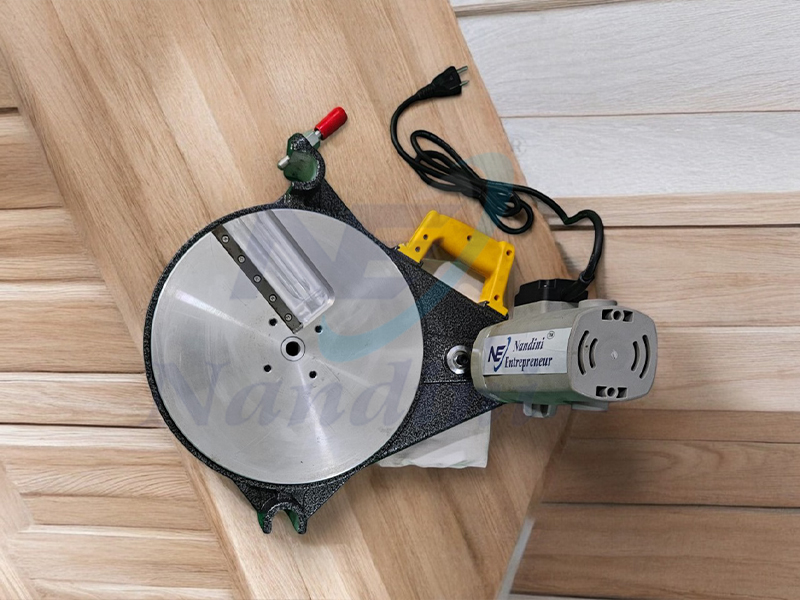

2. Planning tool with separate switch prevents unintentional operation.
3. Durable and long life HSS blade
4. Heating plate with high quality PTFE coating, enables swift temperature control.
